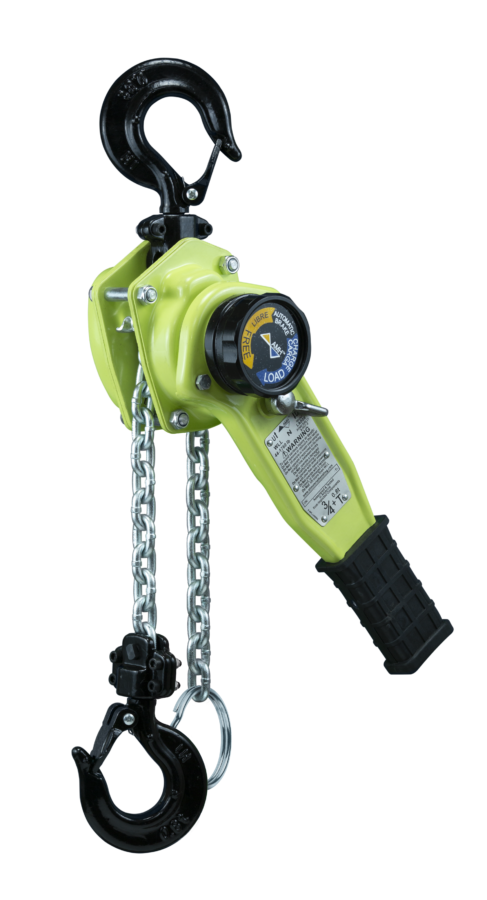

Lever Chain Hoist LA Series (10' Lift)

Regular price $374.95
SPEC SHEET
  • 10' Lift
  • 8. Ton LA008-10U, 1.6 Ton LA016-10U
  • Dual rated with more choices of capacity
  • Hook blocks are bolted, allowing easy disassembly for complete hook inspection
  • Lightweight and durable all steel construction with powder coated finish and plated external components to resist corrosion
  • Premium US Made Grade 80 Zinc plated alloy load chain
  • Self-adjusting double pawl disk type mechanical load brake ensures positive load control
  • Horseshoe chain guard allows operation in any orientation
  • Optional Overload Protection is a one directional clutch that will only slip in the lift direction
  • Meets: ASME/ANSI B3O.21, OSHA, NASA-STD-8719.9
  • ATEX rated ATEX certified II 3 GD c IIB 54º C X for limited use in Hazardous Environments
  • Long-life fused brake friction disk will not crack, shatter, or absorb moisture

Dual Rated

US Ton Metric ton
3/4T 0.8t
1T 1.0t
1 3/4T 1.6t
2 1/4T 2.0t
2 3/4T 2.5t
3 1/2T 3.2t
7T 6.3t
10T 9.0t
