Aluminum Tripod Adjustable Height - 1 Ton R3-282

Regular price $2,395.00

Contact us for Tripod shipping quotes

1 Ton R3-282

Wallace Cranes offers portable aluminum adjustable tripods in 1-5 ton capacities. These lightweight models are easily transportable and can be assembled/disassembled quickly making them an ideal choice for repair and maintenance jobs located off-site.
All units include a standard base with lashing cable to prevent overspreading of legs.
Rubber Base Pad Kits, Mud Base Plate Kits, and Spike Base Kits are optional accessories available for every model.
  • Aluminum Construction
    • Sturdy lightweight construction for quick set-up and take-down
    • Easily transportable
  • Available in 1 to 5 Ton Capacities
  • Adjustable heights available from 5’6″ – 19’0″

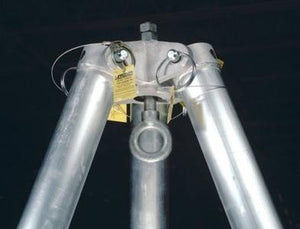

  • Machined alloy heads holds free swiveling eye-bolt which always hangs plumb
  • Spring loaded bolt (adjustable models only) locks in “out” position
  • Legs rest securely on standard base – optional base accessories available for different surfaces
  • Lashing kit provides an extra precaution against slipping and can be used with all base accessories

Adjustable Height Aluminum Tripod PDF

Crane Sizes and Model Numbers

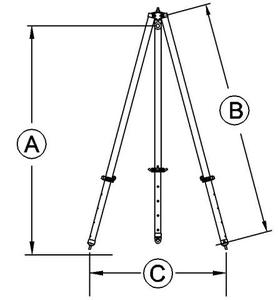

Rated Capacity Model Number Height – Eye Bolt to Floor Overall Length Distance Between Legs Net Wt. Spike Base Model Number
Max. Min. Max. Min. Max. Min.
1 Ton R3-282 10’10” 7’1″ 12’9″ 8’9″ 111″ 63″ 79 676
H3-2142 19’0″ 12’9″ 21’9″ 14’9″ 192″ 108″ 216 1514
2 Ton H3-4122 16’4″ 11’0″ 18’9″ 12’9″ 165″ 93″ 174 1514
3 Ton R3-642 5’6″ 3’8″ 6’9″ 4’9″ 57″ 33″ 57 676
R3-662 8’2″ 5’6″ 9’9″ 6’9″ 84″ 48″ 70 676
4 Ton H3-8102 12″11″ 8’5″ 15’9″ 10’9″ 138″ 78″ 156 1514
5 Ton H3-1062 7’6″ 4’11” 9’9″ 6’9″ 84″ 48″ 111 1514
H3-1082 10’3″ 6’8″ 12’9″ 8’9″ 111″ 63″ 124 1514

Note: Rated capacity is in thousands of pounds.
